MCP Tutorial: Building an MCP Server and MCP Client, Step By Step

What Is Model Context Protocol (MCP)?

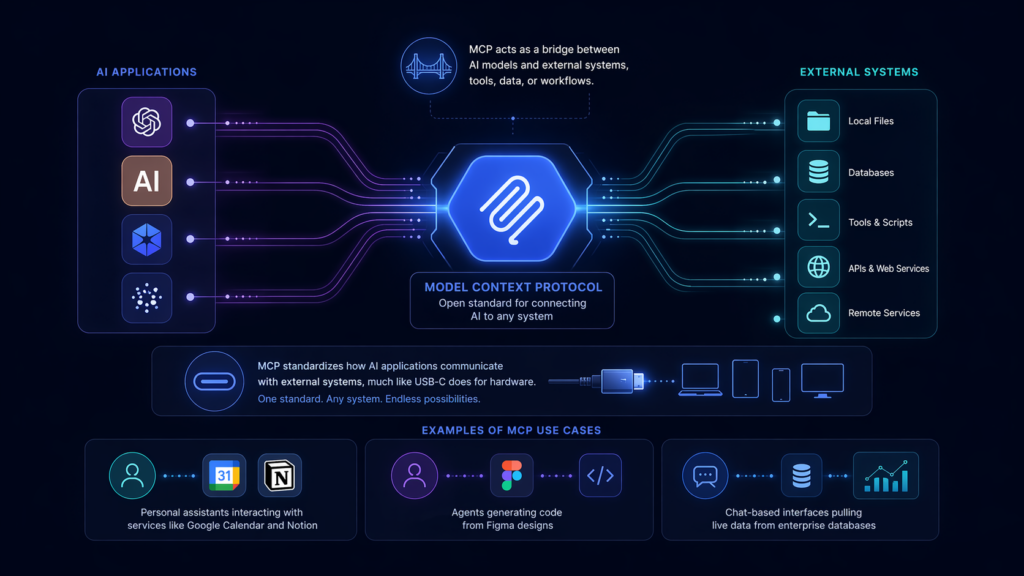

MCP (Model Context Protocol) is an open-source standard that allows AI applications to connect to external systems in a structured and consistent way. It acts as a bridge between AI models and external tools, data sources, or workflows.

With MCP, applications like ChatGPT or Claude can access local files, query databases, run tools, or interact with APIs, expanding what these models can do by giving them direct access to useful context and capabilities.

The protocol standardizes how AI applications communicate with external systems, much like USB-C does for hardware. This enables consistent integration with both local and remote services, making it easier for developers to connect their AI systems to complex infrastructure.

Examples of MCP use cases include personal assistants interacting with services like Google Calendar and Notion, agents generating code from Figma designs, or chat-based interfaces pulling live data from enterprise databases.

Core MCP Concepts and Architecture

MCP uses a client-server model where AI applications, known as MCP hosts, connect to one or more MCP servers through dedicated MCP clients. Each client maintains a persistent connection with a server, enabling the host to access different kinds of contextual data or actions. For example, Visual Studio Code may connect to several MCP servers at once (such as a local filesystem or a remote error-tracking system) using a separate client for each.

The protocol is divided into two main layers. The transport layer handles the mechanics of communication and supports two methods: stdio for local, high-performance connections, and streamable HTTP for remote servers with support for streaming and authentication. The data layer sits above this and uses JSON-RPC 2.0 to define how clients and servers exchange messages.

The most critical concept in MCP is its primitives, which define what capabilities a server or client can expose. Server-side primitives include:

• Tools: Functions AI models can execute (e.g., API calls, database queries)
• Resources: Context data the model can use (e.g., file contents, schema metadata)
• Prompts: Templates for guiding model behavior or interactions

Client-side primitives allow the server to request model outputs (sampling), interact with the user (elicitation), or send logs for monitoring (logging).

MCP also supports notifications, allowing servers to inform clients in real-time when available tools or context change. Additionally, experimental tasks provide durable wrappers for long-running operations, enabling result tracking and asynchronous workflows.

By combining a structured communication protocol with flexible primitives, MCP allows AI systems to operate more effectively in real-world, multi-system environments.

Try Obot Today

⬇️ Download the Obot open-source gateway on GitHub and begin integrating your systems with a secure, extensible MCP foundation.

MCP Tutorial #1: Build an MCP Server

In this tutorial, you’ll build a simple MCP server that provides weather data to an AI client. The server will expose two tools, get_alerts and get_forecast, allowing an AI model to fetch active weather alerts for a US state or get a weather forecast for a given location. The tutorial uses Python with the FastMCP framework and connects the server to Claude for Desktop.

Instructions are adapted from the official MCP specification website.

Step 1: Set Up Your Environment

Start by installing the uv package manager and initializing a new project:

uv init weather  cd weather  uv venv  source .venv/bin/activate  uv add "mcp[cli]" httpx  touch weather.py

You’ll need Python 3.10 or later, and MCP SDK version 1.2.0 or higher.

Step 2: Create the Server

In weather.py, import the necessary packages and set up the FastMCP server instance:

from typing import Any  import httpx  from mcp.server.fastmcp import FastMCP  mcp = FastMCP("weather")

Define a helper function to fetch data from the National Weather Service (NWS) API:

NWS_API_BASE = "https://api.weather.gov"  USER_AGENT = "weather-app/1.0"  async def make_nws_request(url: str) -> dict[str, Any] | None:      headers = {"User-Agent": USER_AGENT, "Accept": "application/geo+json"}      async with httpx.AsyncClient() as client:          try:              response = await client.get(url, headers=headers, timeout=30.0)              response.raise_for_status()              return response.json()          except Exception:              return None

Add a formatting function for alerts:

def format_alert(feature: dict) -> str:      props = feature["properties"]      return f"""  Event: {props.get("event", "Unknown")}  Area: {props.get("areaDesc", "Unknown")}  Severity: {props.get("severity", "Unknown")}  Description: {props.get("description", "No description available")}  Instructions: {props.get("instruction", "No specific instructions provided")}  """

Step 3: Define MCP Tools

Create the get_alerts and get_forecast tools:

@mcp.tool()  async def get_alerts(state: str) -> str:      url = f"{NWS_API_BASE}/alerts/active/area/{state}"      data = await make_nws_request(url)      if not data or "features" not in data:          return "Unable to fetch alerts or no alerts found."      if not data["features"]:          return "No active alerts for this state."      alerts = [format_alert(feature) for feature in data["features"]]      return "\n---\n".join(alerts)  @mcp.tool()  async def get_forecast(latitude: float, longitude: float) -> str:      points_url = f"{NWS_API_BASE}/points/{latitude},{longitude}"      points_data = await make_nws_request(points_url)      if not points_data:          return "Unable to fetch forecast data for this location."      forecast_url = points_data["properties"]["forecast"]      forecast_data = await make_nws_request(forecast_url)      if not forecast_data:          return "Unable to fetch detailed forecast."      periods = forecast_data["properties"]["periods"]      forecasts = []      for period in periods[:5]:          forecast = f"""  {period["name"]}:  Temperature: {period["temperature"]}°{period["temperatureUnit"]}  Wind: {period["windSpeed"]} {period["windDirection"]}  Forecast: {period["detailedForecast"]}  """          forecasts.append(forecast)      return "\n---\n".join(forecasts)

Step 4: Run the Server

Finish the script with a main() function to launch the server over stdio:

def main():      mcp.run(transport="stdio")  if __name__ == "__main__":      main()

Use uv run weather.py to start the server.

Step 5: Connect to Claude for Desktop

To test the server with Claude for Desktop, edit the configuration file at:

~/Library/Application Support/Claude/claude_desktop_config.json

Add an entry like this:

{    "mcpServers": {      "weather": {        "command": "uv",        "args": [          "--directory",          "/ABSOLUTE/PATH/TO/PARENT/FOLDER/weather",          "run",          "weather.py"        ]      }    }  }

Replace the path with the full path to your server directory. Restart Claude for Desktop, and the weather server should appear under the Connectors menu.

Step 6: Test the Integration

Try running commands like:

“What’s the weather in Philadelphia?”

“What are the active weather alerts in Chicago?”

Claude will decide which tool to invoke, call it through MCP, and return the results in natural language.

MCP Tutorial #2: Writing and Connecting a Custom MCP Client

In this tutorial, you’ll build a custom MCP client that connects to an existing MCP server, lists its available features, and invokes tools, resources, or prompts. Writing your own client allows for programmatic control over MCP servers, enabling automation and deeper integration into your applications.

Step 1: Choose Your Language and Set Up

MCP clients can be written in various languages, including TypeScript, Python, .NET, Java, and Rust. Each language has its own SDK or library setup.

For example, to use the TypeScript client SDK:

npm install @modelcontextprotocol/sdk

Or for Python:

pip install mcp

Make sure the server you plan to connect to is already implemented and available locally or remotely.

Step 2: Import Required Libraries

Import the client and transport modules for your language of choice.

TypeScript

import { Client } from "@modelcontextprotocol/sdk/client/index.js";  import { StdioClientTransport } from "@modelcontextprotocol/sdk/client/stdio.js";

Python

from mcp import ClientSession, StdioServerParameters  from mcp.client.stdio import stdio_client

.NET

using ModelContextProtocol.Client;  using ModelContextProtocol.Protocol.Transport;

Java

import io.modelcontextprotocol.client.McpClient;  import io.modelcontextprotocol.client.transport.WebFluxSseClientTransport;

Rust

use rmcp::transport::TokioChildProcess;  use tokio::process::Command;

Step 3: Create the Client and Connect to the Server

Set up the transport method (typically stdio for local processes), then create and connect the client.

TypeScript

const serverCommand = "node";  const serverArgs = ["server.js"];  const io = new StdioClientTransport({ command: serverCommand, args: serverArgs });  const mcpClient = new Client({    name: "example-client",    version: "1.0.0",  });  await mcpClient.connect(io);

Python

params = StdioServerParameters(command="python", args=["server.py"])  async with stdio_client(params) as (r, w):      async with ClientSession(r, w) as client_session:          await client_session.initialize()

.NET

var transport = new StdioClientTransport(new StdioClientTransportOptions  {      Command = "dotnet",      Arguments = new List<string> { "run", "--project", "path/to/server.csproj" }  });  var client = await McpClientFactory.CreateAsync(transport);

Java

identifiers  WebClient webClient = WebClient.builder()          .baseUrl("http://localhost:8080")          .build();  WebFluxSseClientTransport sseTransport = new WebFluxSseClientTransport(WebClient.builder().baseUrl("http://localhost:8080"));  var mcp = McpClient.sync(sseTransport).build();  mcp.initialize();

Rust

let server_path = std::path::Path::new(env!("CARGO_MANIFEST_DIR"))      .join("calculator-server");  let mut cmd = Command::new("cargo");  cmd.arg("run").current_dir(&server_path);  let client = ().serve(TokioChildProcess::new(cmd)?).await?;

Step 4: Discover Server Capabilities

Once connected, list the available tools, resources, and prompts.

TypeScript

const [tools, resources, prompts] = await Promise.all([    client.listTools(),    client.listResources(),    client.listPrompts(),  ]);

Python

tools, resources = await asyncio.gather(      session.list_tools(),      session.list_resources(),  )

.NET

var tools = await client.ListToolsAsync();  foreach (var t in tools)  {      Console.WriteLine(t.Name);  }

Java

ListToolsResult result = client.listTools();  System.out.println("Available Tools = " + result);  client.ping();

Rust

let opts = Default::default();  let available = client.list_tools(opts).await?;  println!("Tools: {:?}", available);

Step 5: Invoke Server Features

You can now call tools, read resources, or use prompts based on the server’s capabilities.

TypeScript

const toolReq = { name: "example-tool", arguments: { arg1: "value" } };  const promptReq = { name: "review-code", arguments: { code: 'console.log("Hello world")' } };  const toolResult = await client.callTool(toolReq);  const fileResource = await client.readResource({ uri: "file:///example.txt" });  const reviewPrompt = await client.getPrompt(promptReq);

Python

add_result = await session.call_tool("add", arguments={"a": 1, "b": 7})  payload, payload_type = await session.read_resource("greeting://hello")

.NET

var result = await client.CallToolAsync(      "Add",      new Dictionary<string, object?> { { "a", 1 }, { "b", 3 } }  );  Console.WriteLine(      result.Content.Where(c => c.Type == "text").Select(c => c.Text).First()  );

Java

var request = new CallToolRequest("add", Map.of("a", 5.0, "b", 3.0));  CallToolResult toolResult = client.callTool(request);  System.out.println("Add Result = " + toolResult);

Rust

let args = serde_json::json!({ "a": 3, "b": 2 })      .as_object()      .cloned();  let req = CallToolRequestParam {      name: "add".into(),      arguments: args,  };  let tool_result = client.call_tool(req).await?;  println!("Add result: {:?}", tool_result);

Step 6: Run the Client

Run the client using your environment’s standard execution method:

• TypeScript: npm run client
• Python: python client.py
• .NET: dotnet run
• Java: ./mvnw exec:java -Dexec.mainClass="your.package.Client"
• Rust: cargo run
